[kubernetes] CI&CD 5탄 - Github Actions Workflow 작성하기

목차



Workflow 작성 전 Secrets, Variables 설정

spring-cloud-hlem의 git token을 먼저 발급해야 한다.

Git token 발급

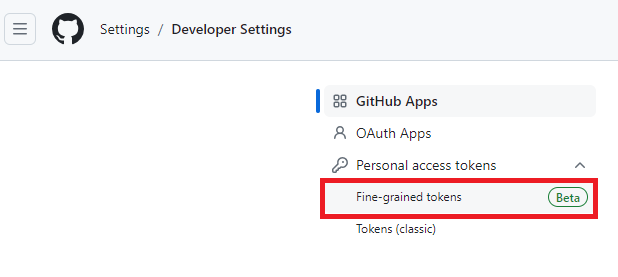

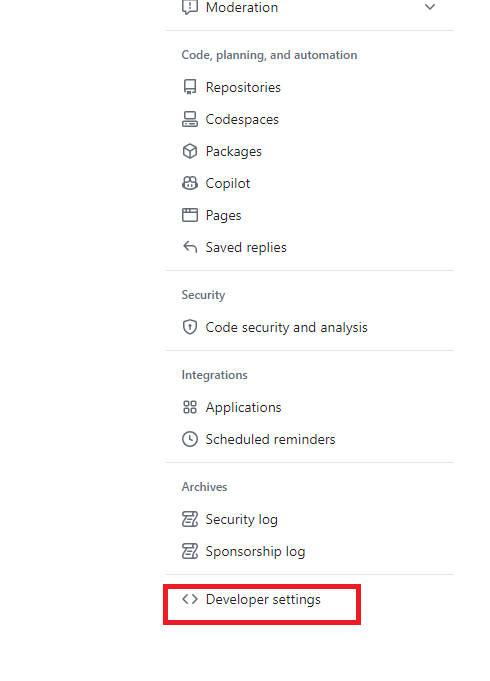

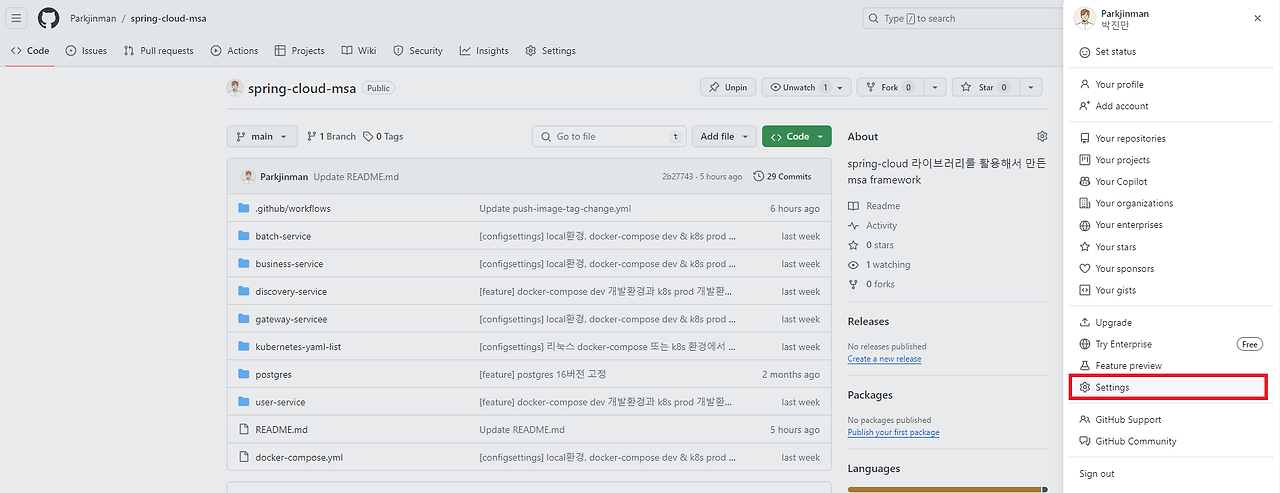

좌측 하단에 Developer settings 클릭 후 Personal access tokens > Fine-grained tokens에 접속한다.

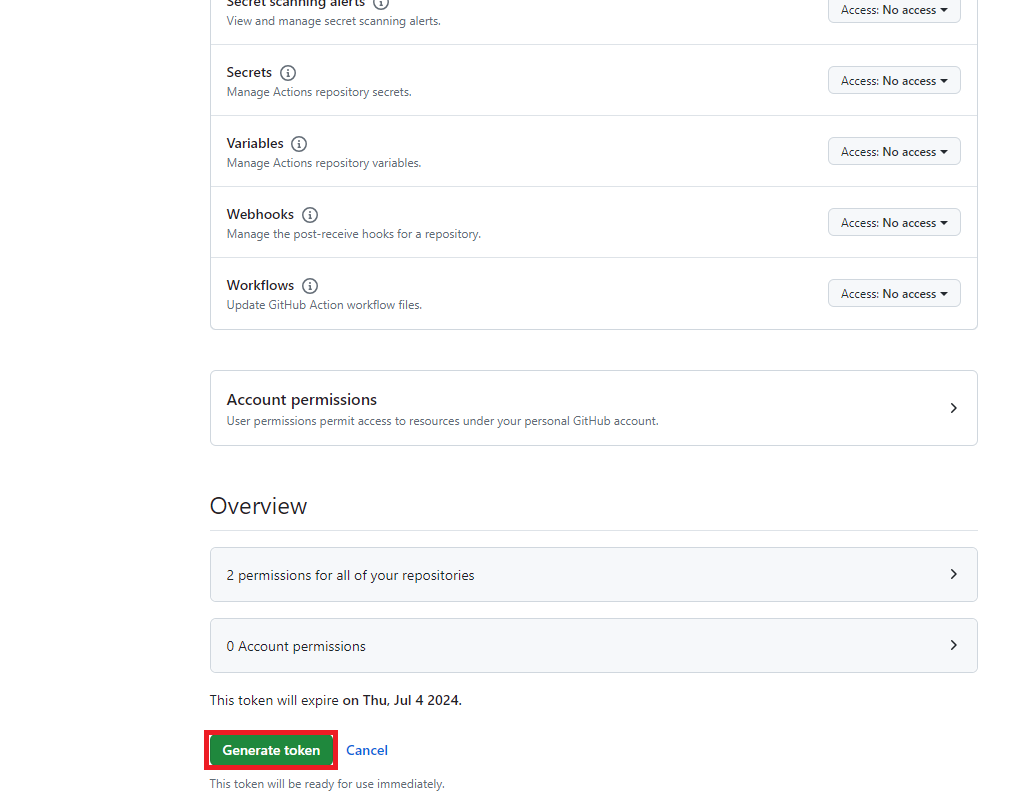

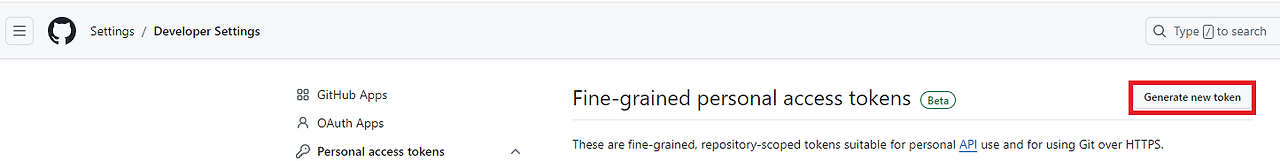

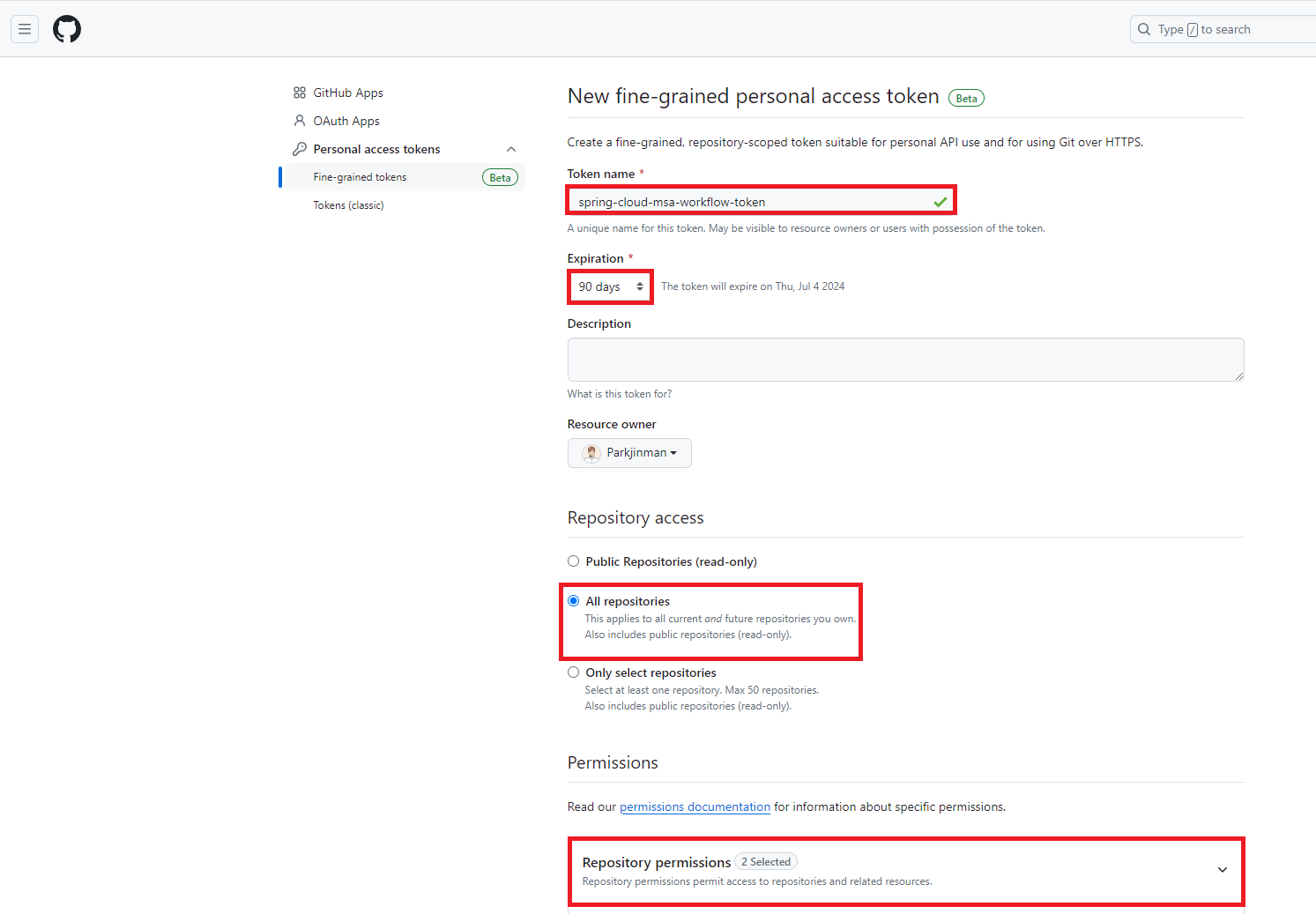

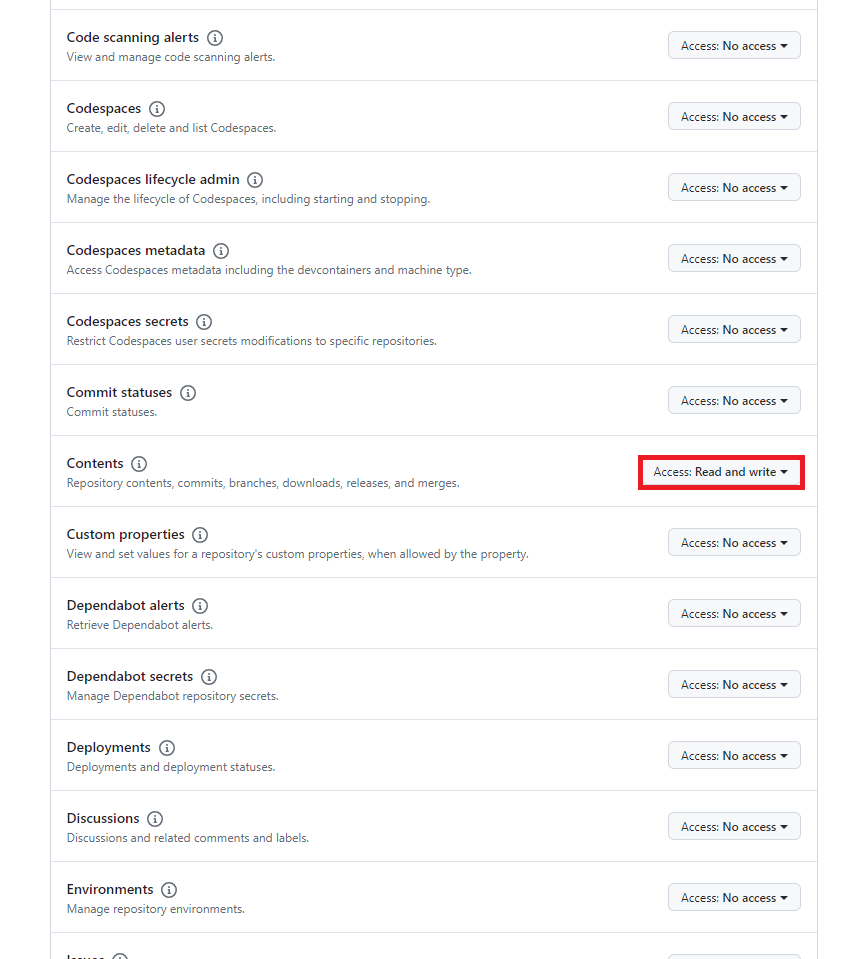

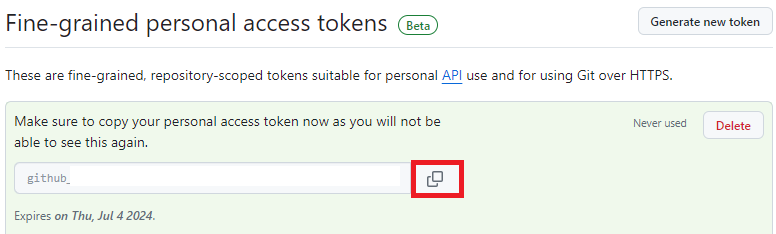

Generate new token을 클릭한 후 아래 화면에 필요한 내용들을 작성 및 선택한다.

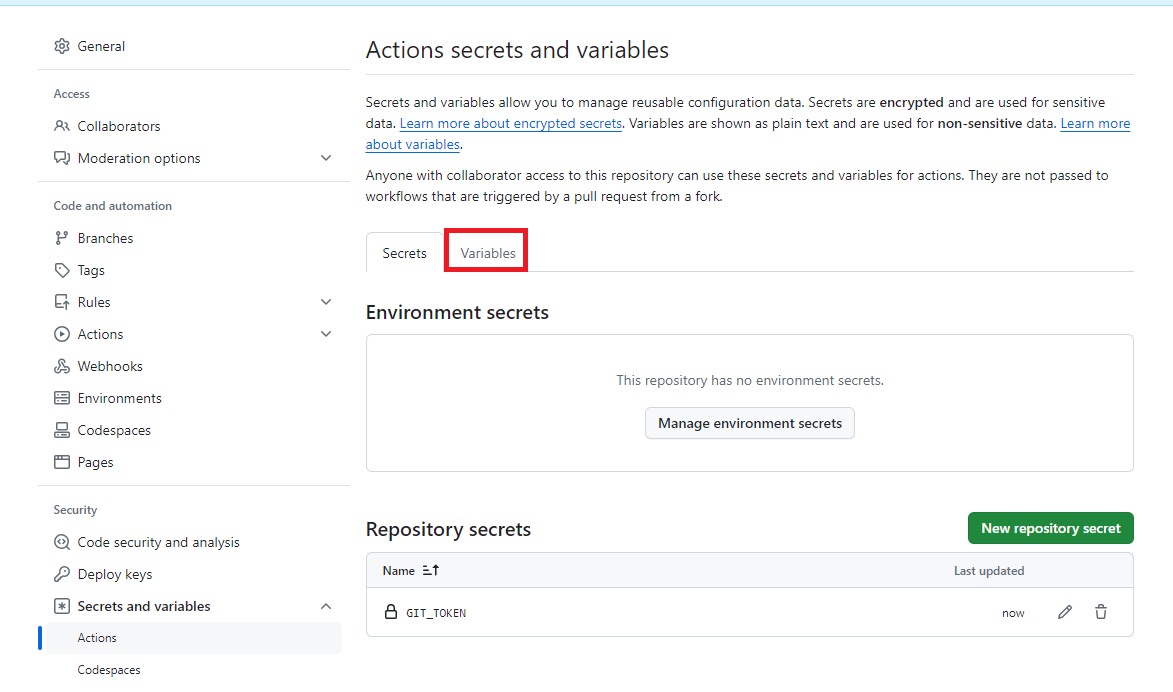

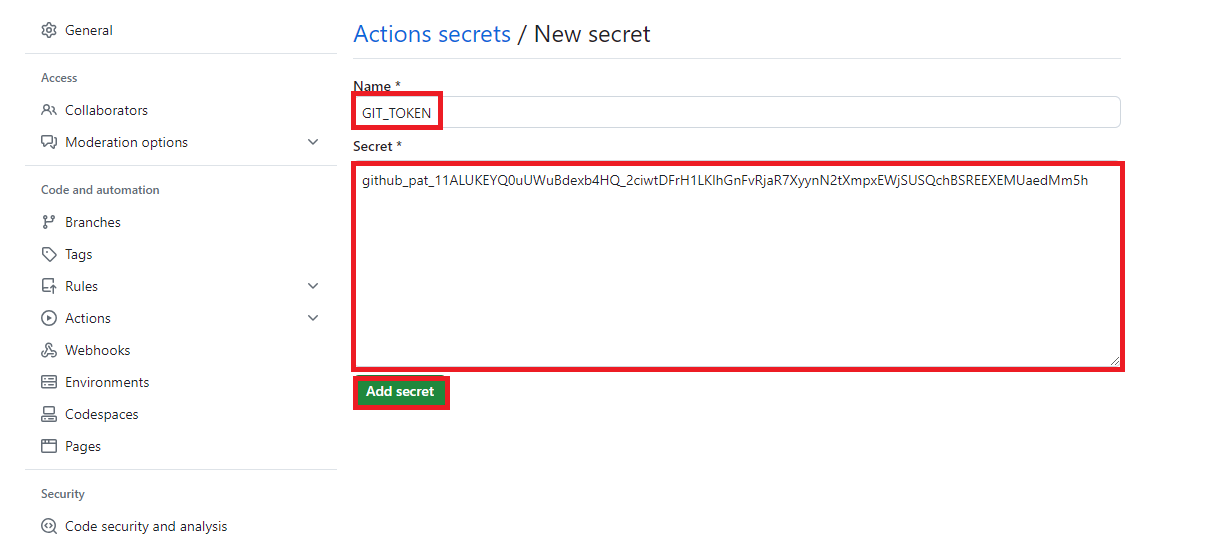

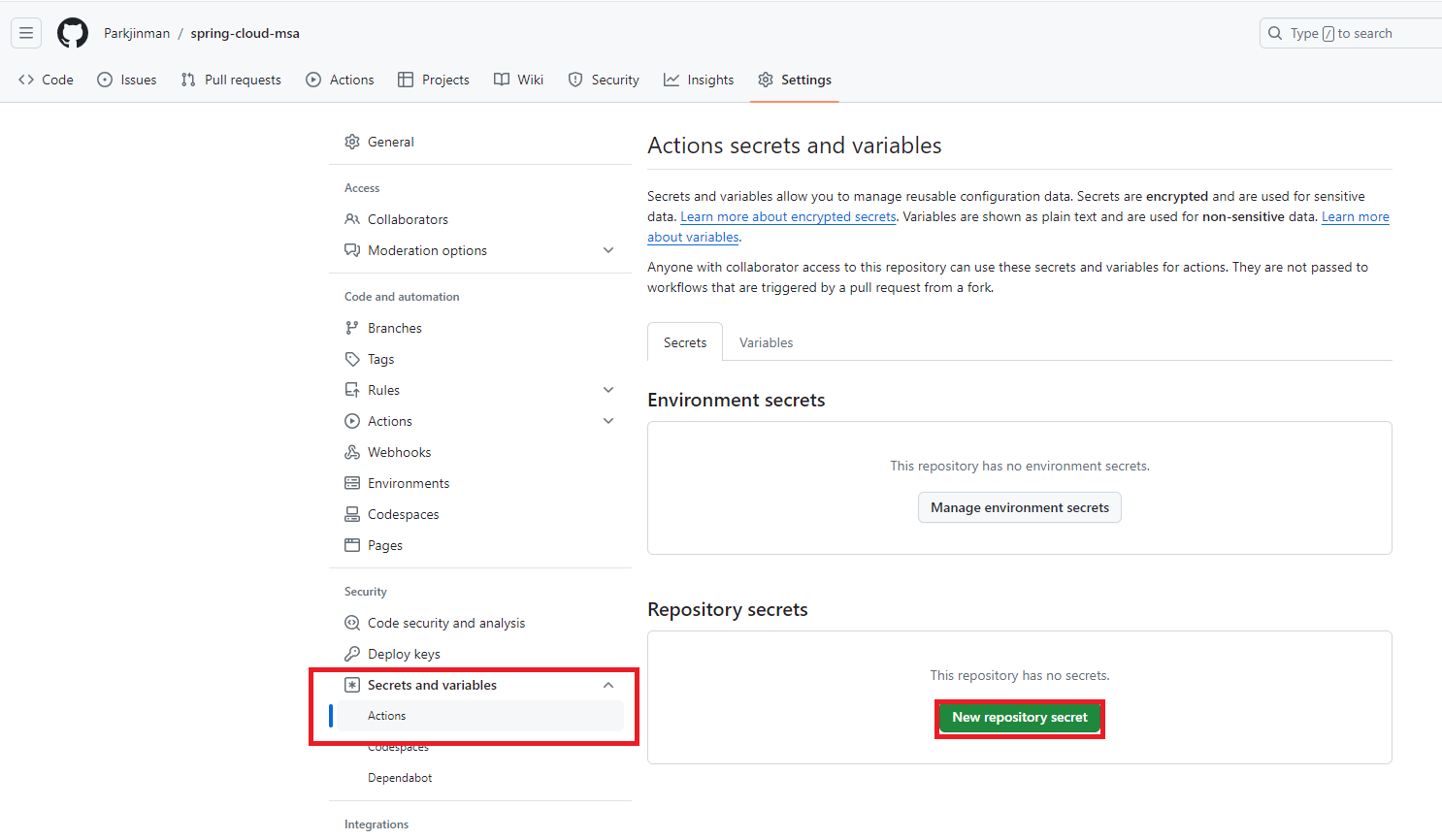

Secrets, Variables 설정

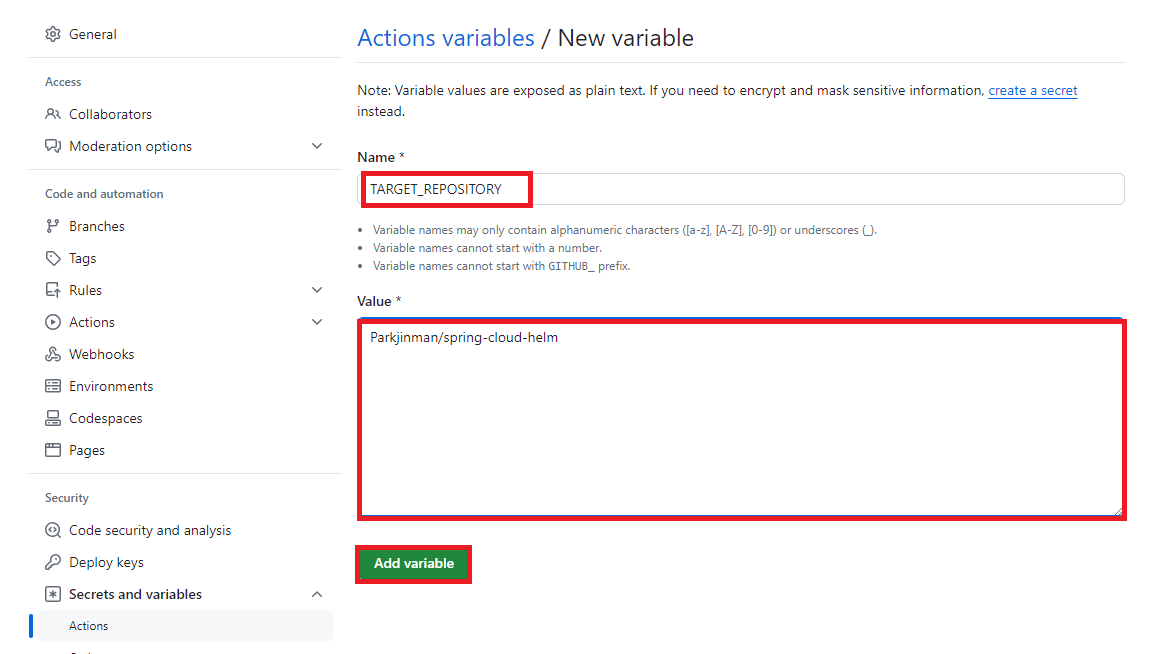

GIT_TOKEN을 등록한 동일한 방법으로 아래 3가지도 등록한다.

DOCKER_HUB_REGISTRY_NAME
DOCKER_USERNAME
DOCKER_PASSWORD

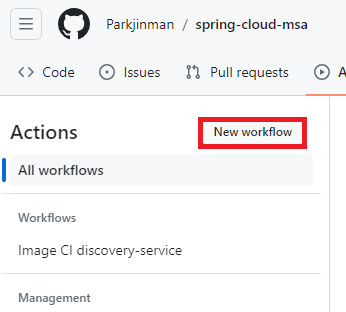

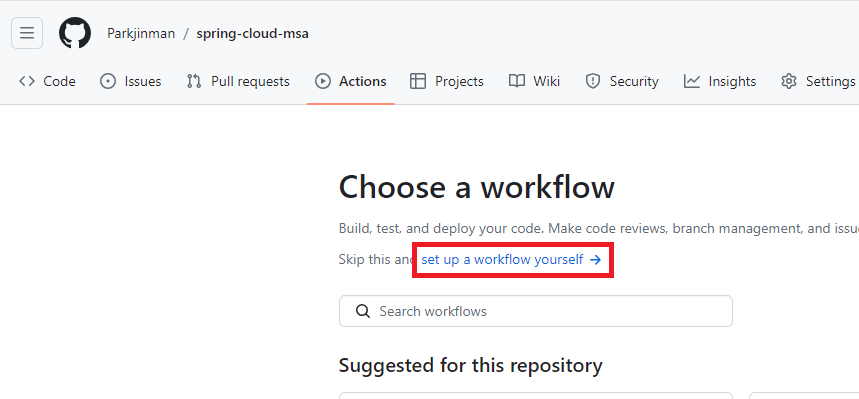

Github actions - workflow 작성



name: Image CI discovery-service

# main 브랜치 push & discovery-service의 변경 내역이 있는 경우
on:
  push:
    branches: [ "main" ]
    paths:
      - 'discovery-service/**'

env:
  GIT_TOKEN: ${{ secrets.GIT_TOKEN }}                                 # helm chart가 존재하는 github target repository에 token이 있어야 접근 가능
  TARGET_REPOSITORY: ${{ vars.TARGET_REPOSITORY }}                    # helm chart github path : ex) Parkjinman/discovery-helm
  SEQUENCE_NUMBER: ${{ github.run_number }}                           # workflow 생성 순번 - 이미지 tag 이름을 짓기 위해 필요요
  DOCKER_HUB_REGISTRY_NAME: ${{ secrets.DOCKER_HUB_REGISTRY_NAME }}   # docker hub 접속 url
  DOCKER_USERNAME: ${{ secrets.DOCKER_USERNAME }}                     # docker hub username
  DOCKER_PASSWORD: ${{ secrets.DOCKER_PASSWORD }}                     # docker hub password

jobs:

  build:

    runs-on: ubuntu-latest

    steps:
    - uses: actions/checkout@v4
    - name: Set up JDK 21
      uses: actions/setup-java@v4
      with:
        java-version: '21'
        distribution: 'temurin'

    - name: Gradle Caching
      uses: actions/cache@v3
      with:
        path: |
          ~/.gradle/caches
          ~/.gradle/wrapper
        key: ${{ runner.os }}-gradle-${{ hashFiles('**/*.gradle*', '**/gradle-wrapper.properties') }}
        restore-keys: |
          ${{ runner.os }}-gradle-

    - name: Setup Gradle
      uses: gradle/actions/setup-gradle@417ae3ccd767c252f5661f1ace9f835f9654f2b5 # v3.1.0
      with:
        gradle-version: '8.5'

    - name: Build with Gradle 8.5
      run: |
            cd discovery-service
            gradle clean build --exclude-task test

    - name: Set up Docker Buildx
      uses: docker/setup-buildx-action@v1

    - name: docker hub login
      run: echo "${{ env.DOCKER_PASSWORD }}" | docker login -u "${{ env.DOCKER_USERNAME }}" --password-stdin

    - name: Build the Docker image
      run: |
          cd discovery-service
          docker build -t woodpecker-msa-discovery-service .
          docker tag woodpecker-msa-discovery-service ${{ env.DOCKER_HUB_REGISTRY_NAME }}/woodpecker-msa-discovery-service:${{ env.SEQUENCE_NUMBER }}

    - name: Push Docker image to Docker Hub
      run: docker push ${{ env.DOCKER_HUB_REGISTRY_NAME }}/woodpecker-msa-discovery-service:${{ env.SEQUENCE_NUMBER }}

    - uses: actions/checkout@v4
      with:
        repository: ${{ env.TARGET_REPOSITORY }}
        token: ${{ env.GIT_TOKEN }}
    - uses: fjogeleit/yaml-update-action@main
      with:
        valueFile: 'values.yaml'
        value: ${{ env.SEQUENCE_NUMBER }}
        propertyPath: 'deployment.discovery.image.tag'
        message: 'ci: Update image tag to ${{ env.SEQUENCE_NUMBER }}'
        commitChange: true
        branch: main
        repository: ${{ env.TARGET_REPOSITORY }}
        token: ${{ env.GIT_TOKEN }}

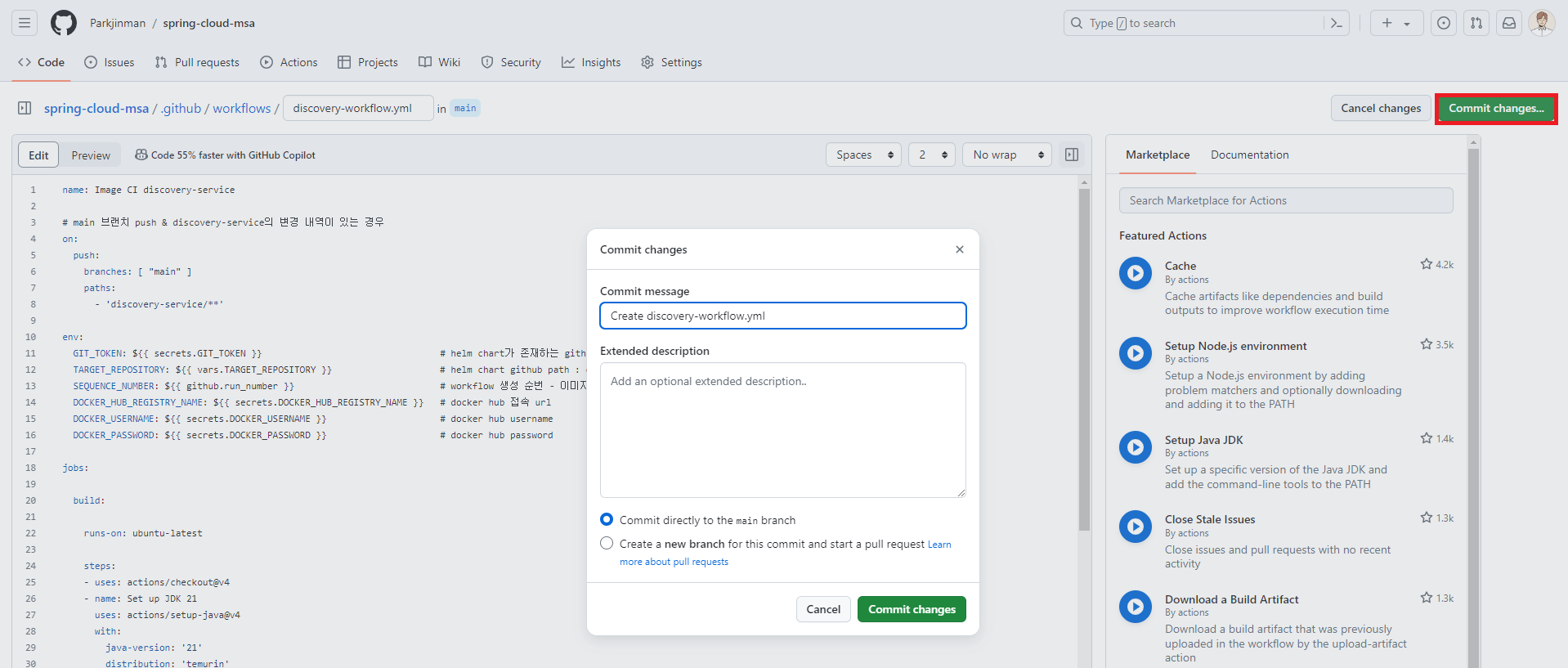

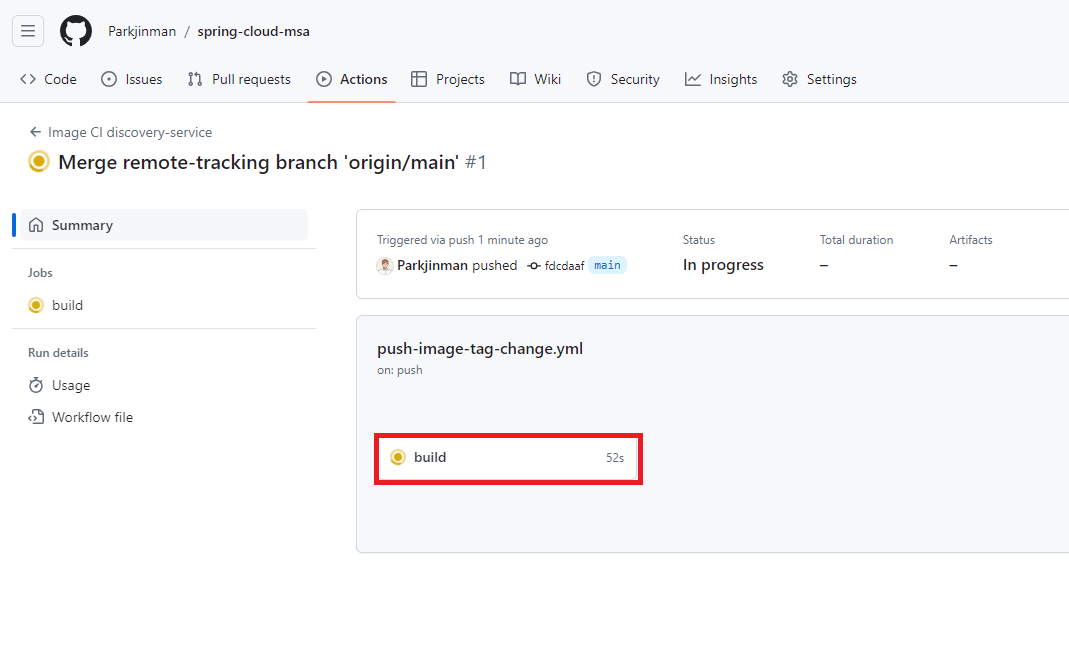

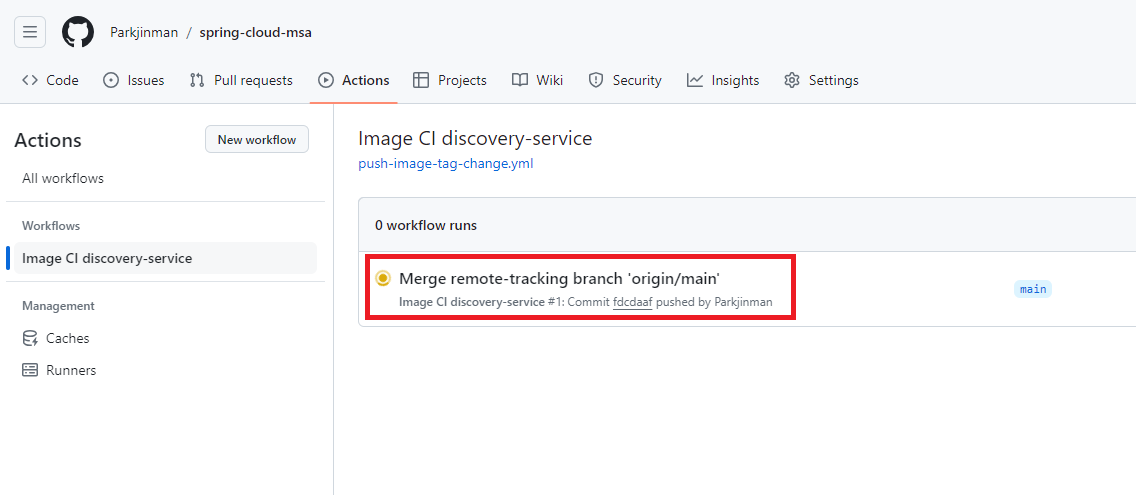

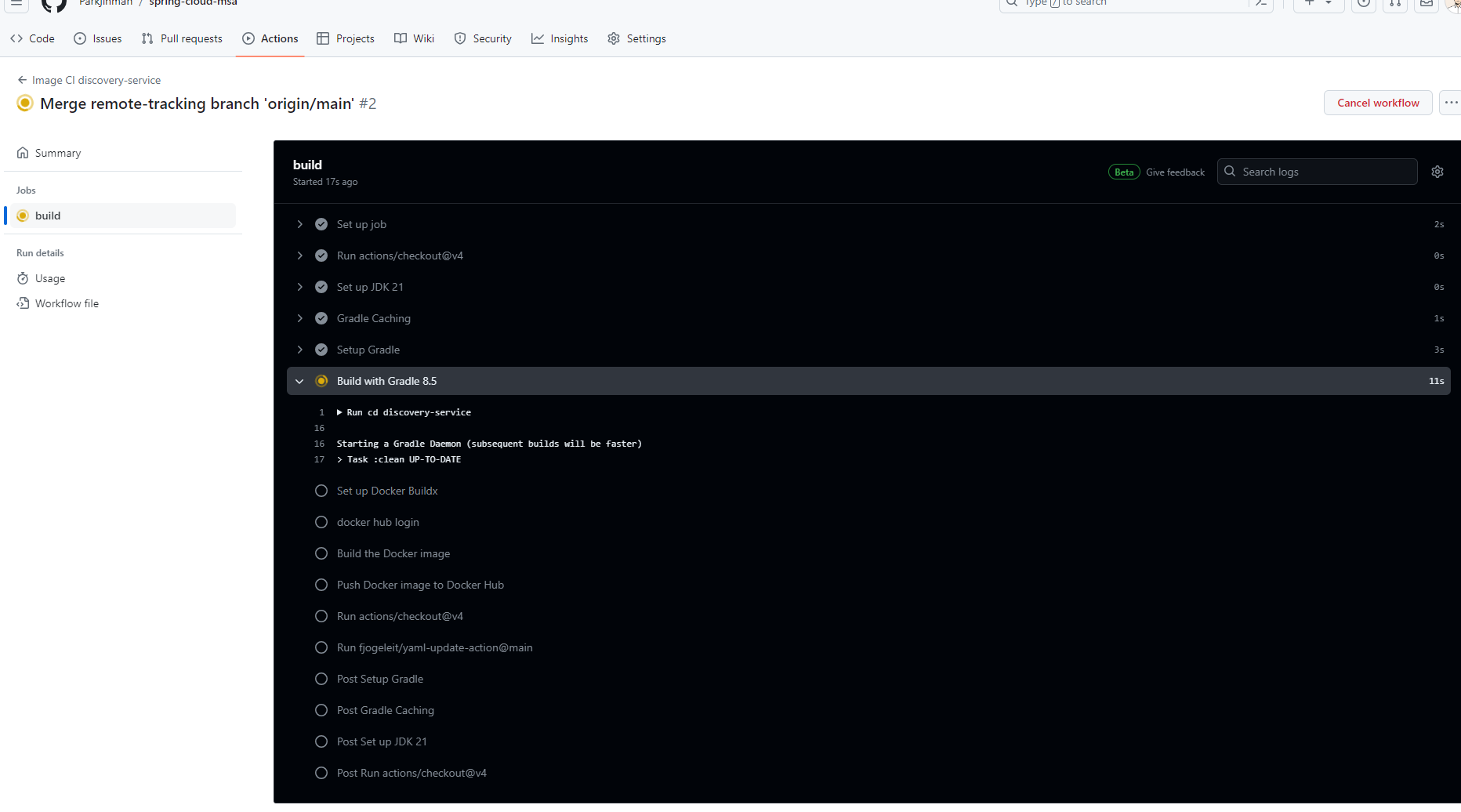

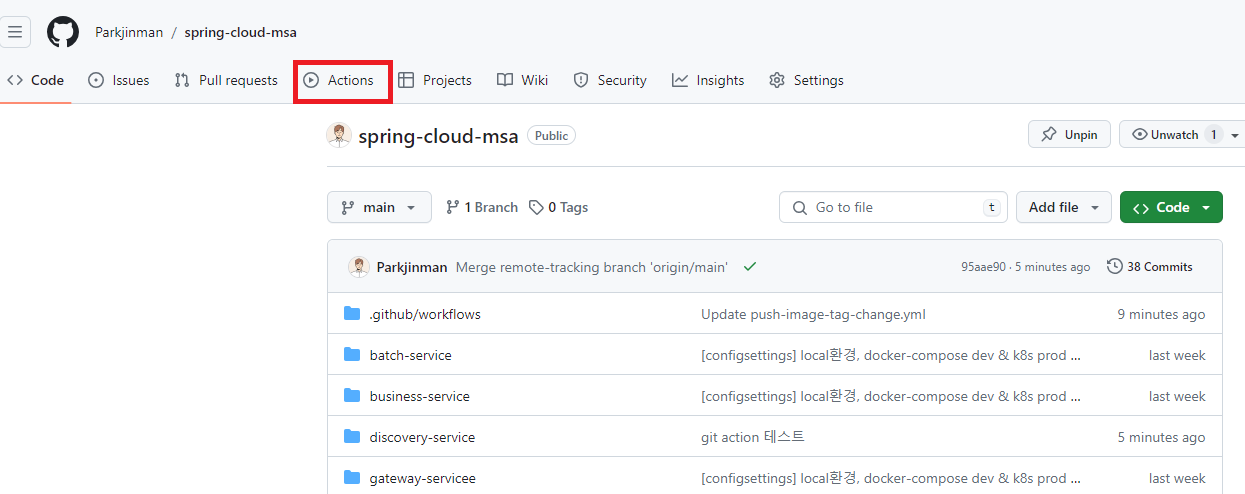

Github commit & push 하여 workflow 테스트

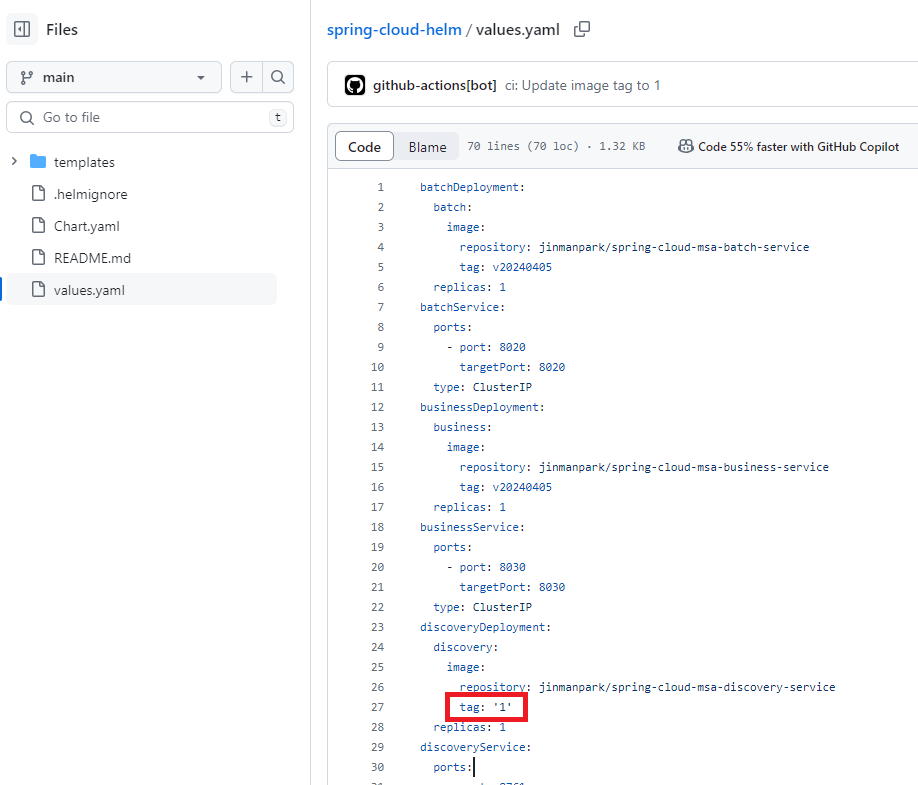

성공했다면 argocd에서는 default로 설정했기 때문에 3분 후에 자동 적용한다.

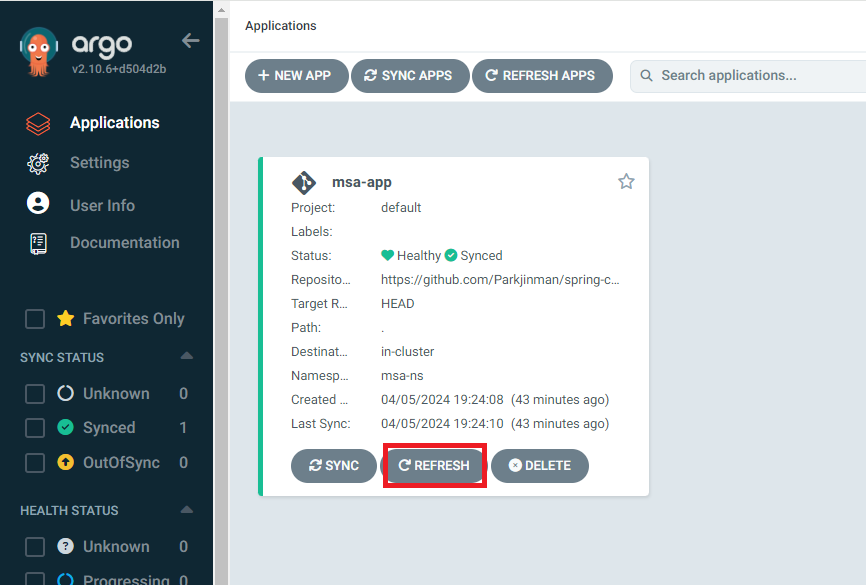

즉시 적용하고 싶다면 REFRESH를 클릭하자!
